Calculating Δ t For a relativistic event

Suppose a cosmic ray colliding with a nucleus in Earth’s upper atmosphere produces a muon that has a velocity v = 0.950 c . The muon then travels at constant velocity and lives 2.20 μs as measured in the muon’s frame of reference. (You can imagine this as the muon’s internal clock.) How long does the muon live as measured by an earthbound observer ( [link] )?

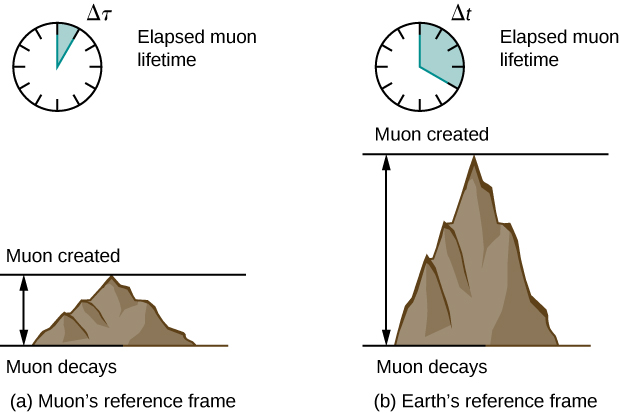

Figure a, captioned “Muon’s reference frame,” shows a diagram of an analog clock with a time interval shaded and labeled Delta tau. The clock is labeled “Elapsed muon lifetime”. Below the clock is a drawing of a mountain. A horizontal line at the level of the top of the mountain is labeled “Muon created.” A horizontal line at the base of the mountain is labeled “Muon decays.” A vertical double-ended arrow indicates the vertical distance between these lines. Figure b is captioned “Earth’s reference frame.” It shows a diagram of an analog clock with a time interval shaded and labeled Delta t. The shaded interval in figure b is greater than the interval in figure a. The clock is labeled “Elapsed muon lifetime”. Below the clock is a drawing of a mountain that is taller than the mountain in figure a. A horizontal line at the level of the top of the mountain is labeled “Muon created.” A horizontal line at the base of the mountain is labeled “Muon decays.” A vertical double-ended arrow indicates the vertical distance between these lines.
A muon in Earth’s atmosphere lives longer as measured by an earthbound observer than as measured by the muon’s internal clock.

As we will discuss later, in the muon’s reference frame, it travels a shorter distance than measured in Earth’s reference frame.

Strategy

A clock moving with the muon measures the proper time of its decay process, so the time we are given is Δ τ = 2.20 μ s . The earthbound observer measures Δ t as given by the equation Δ t = γ Δ τ . Because the velocity is given, we can calculate the time in Earth’s frame of reference.

Solution

  1. Identify the knowns: v = 0.950 c , Δ τ = 2.20 μ s.
  2. Identify the unknown: Δ t .
  3. Express the answer as an equation. Use:
    Δ t = γ Δ τ

    with
    γ = 1 1 v 2 c 2 .
  4. Do the calculation. Use the expression for γ to determine Δ t from Δ τ :
    Δ t = γ Δ τ = 1 1 v 2 c 2 Δ τ = 2.20 μ s 1 ( 0.950 ) 2 = 7.05 μ s.

    Remember to keep extra significant figures until the final answer.

Significance

One implication of this example is that because γ = 3.20 at 95.0% of the speed of light ( v = 0.950 c ) , the relativistic effects are significant. The two time intervals differ by a factor of 3.20, when classically they would be the same. Something moving at 0.950 c is said to be highly relativistic.

Got questions? Get instant answers now!

Relativistic television

A non-flat screen, older-style television display ( [link] ) works by accelerating electrons over a short distance to relativistic speed, and then using electromagnetic fields to control where the electron beam strikes a fluorescent layer at the front of the tube. Suppose the electrons travel at 6.00 × 10 7 m/s through a distance of 0.200 m from the start of the beam to the screen. (a) What is the time of travel of an electron in the rest frame of the television set? (b) What is the electron’s time of travel in its own rest frame?

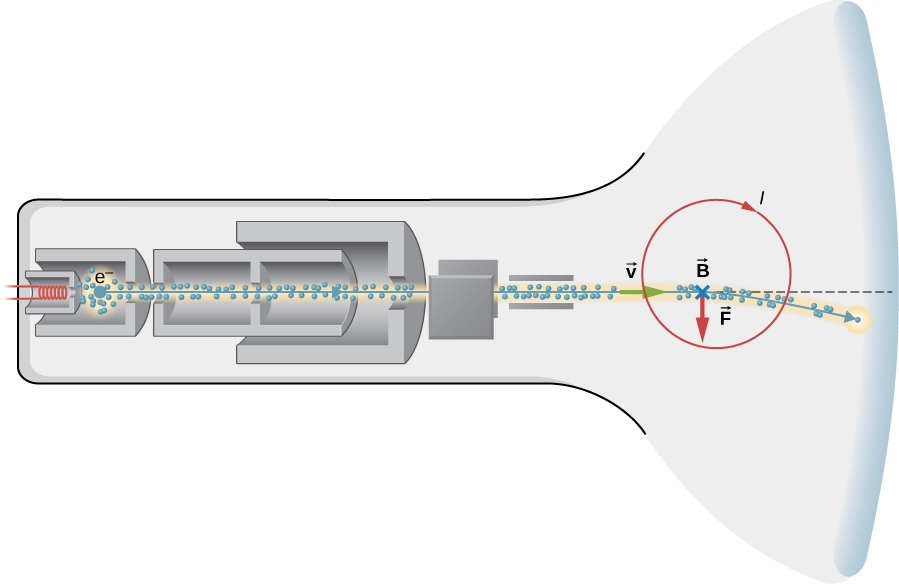

An illustration of the details of the inside of a cathode ray tube display is shown. At one end of the tube is a filament and a cloud of electrons which are collimated into a horizontal beam along the axis of the tube. The electron beam then passes between two vertical parallel plates, and then between two horizontal parallel plates. The electron exit the plates with velocity v to the right and enter a region magnetic field B pointing into the page, a clockwise current I, and a downward force F. The electron beam bends downward in this region and hits the vertical front of the tube below the axis.
The electron beam in a cathode ray tube television display.

Strategy for (a)

(a) Calculate the time from v t = d . Even though the speed is relativistic, the calculation is entirely in one frame of reference, and relativity is therefore not involved.

Solution

  1. Identify the knowns:
    v = 6.00 × 10 7 m/s; d = 0.200 m .
  2. Identify the unknown: the time of travel Δ t .
  3. Express the answer as an equation:
    Δ t = d v .
  4. Do the calculation:
    t = 0.200 m 6.00 × 10 7 m/s = 3.33 × 10 −9 s.

Significance

The time of travel is extremely short, as expected. Because the calculation is entirely within a single frame of reference, relativity is not involved, even though the electron speed is close to c .

Strategy for (b)

(b) In the frame of reference of the electron, the vacuum tube is moving and the electron is stationary. The electron-emitting cathode leaves the electron and the front of the vacuum tube strikes the electron with the electron at the same location. Therefore we use the time dilation formula to relate the proper time in the electron rest frame to the time in the television frame.
