An x-ray image of Bertha Röentgen’s hand is shown with a dark circular spot superimposed on the fingers.
One of the first x-ray images, taken by Röentgen himself. The hand belongs to Bertha Röentgen, his wife. (credit: Wilhelm Conrad Röntgen, via Wikimedia Commons)

High photon energy also enables γ size 12{γ} {} rays to penetrate materials, since a collision with a single atom or molecule is unlikely to absorb all the γ size 12{γ} {} ray’s energy. This can make γ size 12{γ} {} rays useful as a probe, and they are sometimes used in medical imaging. x rays , as you can see in [link] , overlap with the low-frequency end of the γ size 12{γ} {} ray range. Since x rays have energies of keV and up, individual x-ray photons also can produce large amounts of ionization. At lower photon energies, x rays are not as penetrating as γ size 12{γ} {} rays and are slightly less hazardous. X rays are ideal for medical imaging, their most common use, and a fact that was recognized immediately upon their discovery in 1895 by the German physicist W. C. Roentgen (1845–1923). (See [link] .) Within one year of their discovery, x rays (for a time called Roentgen rays) were used for medical diagnostics. Roentgen received the 1901 Nobel Prize for the discovery of x rays.

Connections: conservation of energy

Once again, we find that conservation of energy allows us to consider the initial and final forms that energy takes, without having to make detailed calculations of the intermediate steps. [link] is solved by considering only the initial and final forms of energy.

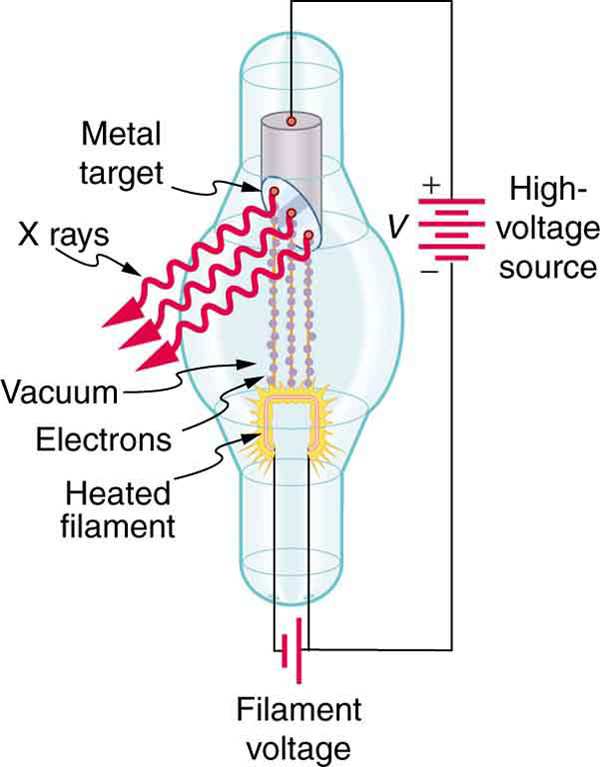

A cathode ray tube connected to a high-voltage source is shown in the figure. The image shows electrons coming out of the heated filament at one end of the vacuum tube as tiny balls, and hitting the metal plate at the opposite end of the vacuum tube. X rays are shown coming out from the metal plate in the form of waves.
X rays are produced when energetic electrons strike the copper anode of this cathode ray tube (CRT). Electrons (shown here as separate particles) interact individually with the material they strike, sometimes producing photons of EM radiation.

While γ size 12{γ} {} rays originate in nuclear decay, x rays are produced by the process shown in [link] . Electrons ejected by thermal agitation from a hot filament in a vacuum tube are accelerated through a high voltage, gaining kinetic energy from the electrical potential energy. When they strike the anode, the electrons convert their kinetic energy to a variety of forms, including thermal energy. But since an accelerated charge radiates EM waves, and since the electrons act individually, photons are also produced. Some of these x-ray photons obtain the kinetic energy of the electron. The accelerated electrons originate at the cathode, so such a tube is called a cathode ray tube (CRT), and various versions of them are found in older TV and computer screens as well as in x-ray machines.

X-ray photon energy and x-ray tube voltage

Find the maximum energy in eV of an x-ray photon produced by electrons accelerated through a potential difference of 50.0 kV in a CRT like the one in [link] .

Strategy

Electrons can give all of their kinetic energy to a single photon when they strike the anode of a CRT. (This is something like the photoelectric effect in reverse.) The kinetic energy of the electron comes from electrical potential energy. Thus we can simply equate the maximum photon energy to the electrical potential energy—that is, hf = qV. (We do not have to calculate each step from beginning to end if we know that all of the starting energy qV is converted to the final form hf. )

Solution

The maximum photon energy is hf = qV size 12{ ital "hf"= ital "qV"} {} , where q is the charge of the electron and V is the accelerating voltage. Thus,

hf = ( 1 . 60 × 10 –19 C ) ( 50.0 × 10 3 V ) . size 12{ ital "hf" = \( 1 "." "60 " times " 10" rSup { size 8{"-19"} } " C" \) \( "50" "." "0 " times " 10" rSup { size 8{3} } " V" \) } {}

From the definition of the electron volt, we know 1 eV = 1 . 60 × 10 –19 J , where 1 J = 1 C V. size 12{1" J"=1`C cdot V} {} Gathering factors and converting energy to eV yields

hf = ( 50.0 × 10 3 ) ( 1.60 × 10 –19 C V ) ( 1 eV 1.60 × 10 –19 C V ) = ( 50.0 × 10 3 ) ( 1 eV ) = 50.0 keV.

Discussion

This example produces a result that can be applied to many similar situations. If you accelerate a single elementary charge, like that of an electron, through a potential given in volts, then its energy in eV has the same numerical value. Thus a 50.0-kV potential generates 50.0 keV electrons, which in turn can produce photons with a maximum energy of 50 keV. Similarly, a 100-kV potential in an x-ray tube can generate up to 100-keV x-ray photons. Many x-ray tubes have adjustable voltages so that various energy x rays with differing energies, and therefore differing abilities to penetrate, can be generated.
