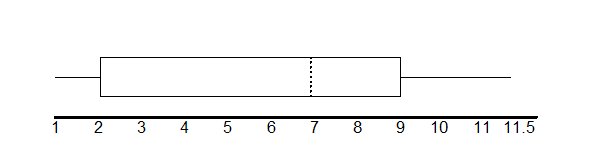

Horizontal boxplot's first whisker extends from the smallest value, 1, to the first quartile, 2, the box begins at the first quartile and extends to the third quartile, 9, a vertical dashed line is drawn at the median, 7, and the second whisker extends from the third quartile to the largest value of 11.5.

The two whiskers extend from the first quartile to the smallest value and from the third quartile to the largest value. The median is shown with a dashed line.

The following data are the heights of 40 students in a statistics class.

  • 59
  • 60
  • 61
  • 62
  • 62
  • 63
  • 63
  • 64
  • 64
  • 64
  • 65
  • 65
  • 65
  • 65
  • 65
  • 65
  • 65
  • 65
  • 65
  • 66
  • 66
  • 67
  • 67
  • 68
  • 68
  • 69
  • 70
  • 70
  • 70
  • 70
  • 70
  • 71
  • 71
  • 72
  • 72
  • 73
  • 74
  • 74
  • 75
  • 77

Construct a box plot:

Using the ti-83, 83+, 84, 84+ calculator

  • Enter data into the list editor (Press STAT 1:EDIT). If you need to clear the list, arrow up to the name L1, press CLEAR, arrow down.
  • Put the data values in list L1.
  • Press STAT and arrow to CALC. Press 1:1-VarStats. Enter L1.
  • Press ENTER
  • Use the down and up arrow keys to scroll.

  • Smallest value = 59
  • Largest value = 77
  • Q1: First quartile = 64.5
  • Q2: Second quartile or median= 66
  • Q3: Third quartile = 70

Using the ti-83, 83+, 84, 84+ to construct the box plot

Go to 14:Appendix for Notes for the TI-83, 83+, 84, 84+ Calculator. To create the box plot:
  • Press Y=. If there are any equations, press CLEAR to clear them.
  • Press 2nd Y=.
  • Press 4:Plotsoff. Press ENTER
  • Press 2nd Y=
  • Press 1:Plot1. Press ENTER.
  • Arrow down and then use the right arrow key to go to the 5th picture which is the box plot. Press ENTER.
  • Arrow down to Xlist: Press 2nd 1 for L1
  • Arrow down to Freq: Press ALPHA. Press 1.
  • Press ZOOM. Press 9:ZoomStat.
  • Press TRACE and use the arrow keys to examine the box plot.

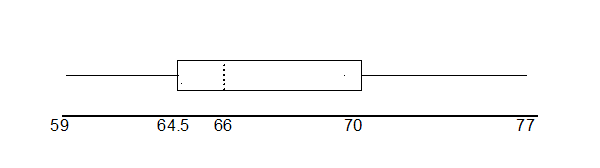

Horizontal boxplot with first whisker extending from smallest value, 59, to Q1, 64.5, box beginning from Q1 to Q3, 70, median dashed line at Q2, 66, and second whisker extending from Q3 to largest value, 77.
  • Each quarter has 25% of the data.
  • The spreads of the four quarters are 64.5 - 59 = 5.5 (first quarter), 66 - 64.5 = 1.5 (second quarter), 70 - 66 = 4 (3rd quarter), and 77 - 70 = 7 (fourth quarter). So, the second quarter has the smallest spread and the fourth quarter has the largest spread.
  • Interquartile Range: IQR = Q3 - Q1 = 70 - 64.5 = 5.5 .
  • The interval 59 through 65 has more than 25% of the data so it has more data in it than the interval 66 through 70 which has 25% of the data.
  • The middle 50% (middle half) of the data has a range of 5.5 inches.

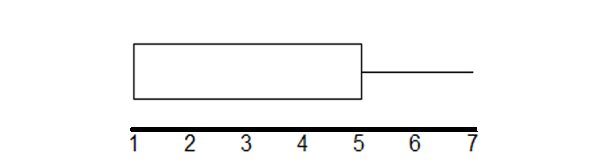

For some sets of data, some of the largest value, smallest value, first quartile, median, and third quartile may be the same. For instance, you might have a data set in which the median and the third quartile are the same. In this case, the diagram would not have a dotted line inside the box displaying the median. The right side of the box would display both the third quartile and the median. For example, if the smallest value and the first quartile were both 1, the median and the third quartile were both 5, and the largest value was 7, the box plot would look as follows:

Horizontal boxplot box begins at the smallest value and Q1, 1, until the Q3 and median, 5, no median line is designated, and has its lone whisker extending from the Q3 to the largest value, 7.

Test scores for a college statistics class held during the day are:

  • 99
  • 56
  • 78
  • 55.5
  • 32
  • 90
  • 80
  • 81
  • 56
  • 59
  • 45
  • 77
  • 84.5
  • 84
  • 70
  • 72
  • 68
  • 32
  • 79
  • 90

Test scores for a college statistics class held during the evening are:

  • 98
  • 78
  • 68
  • 83
  • 81
  • 89
  • 88
  • 76
  • 65
  • 45
  • 98
  • 90
  • 80
  • 84.5
  • 85
  • 79
  • 78
  • 98
  • 90
  • 79
  • 81
  • 25.5

  • What are the smallest and largest data values for each data set?
  • What is the median, the first quartile, and the third quartile for each data set?
  • Create a boxplot for each set of data.
  • Which boxplot has the widest spread for the middle 50% of the data (the data between the first and third quartiles)? What does this mean for that set of data in comparison to the other set of data?
  • For each data set, what percent of the data is between the smallest value and the first quartile? (Answer: 25%) the first quartile and the median? (Answer: 25%) the median and the third quartile? the third quartile and the largest value? What percent of the data is between the first quartile and the largest value? (Answer: 75%)

    First data set

  • Xmin = 32
  • Q1 = 56
  • M = 74.5
  • Q3 = 82.5
  • Xmax = 99

    Second data set

  • Xmin = 25.5
  • Q1 = 78
  • M = 81
  • Q3 = 89
  • Xmax = 98
Two box plots over a number line from 0 to 100.  The top plot shows a whisker from 32 to 56, a solid line at 56, a dashed line at 74.5, a solid line at 82.5, and a whisker from 82.5 to 99.  The lower plot shows a whisker from 25.5 to 78, solid line at 78, dashed line at 81, solid line at 89, and a whisker from 89 to 98.
Got questions? Get instant answers now!

The first data set (the top box plot) has the widest spread for the middle 50% of the data. IQR = Q3 - Q1 is 82.5 - 56 = 26.5 for the first data set and 89 - 78 = 11 for the second data set. So, the first set of data has its middle 50% of scores more spread out.

25% of the data is between M and Q3 and 25% is between Q3 and Xmax .

Got questions? Get instant answers now!
