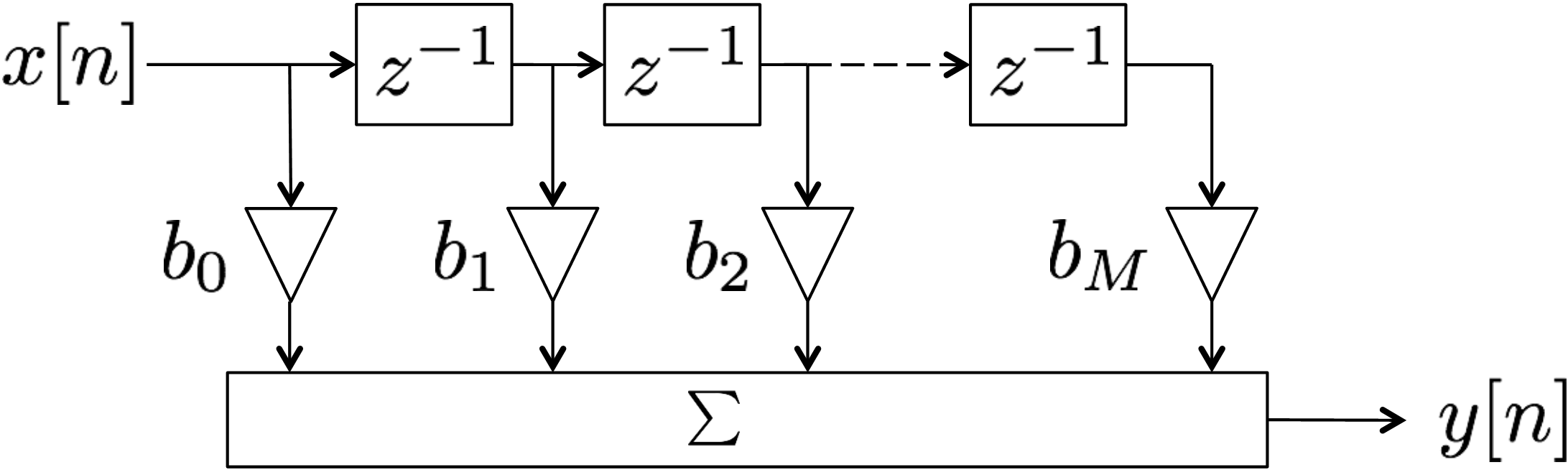

In order to have a generalized linear phase response, FIR filters of length $N$ must be designed so that their impulse responses $h[n]$ are either even or odd symmetric about the center time value(s) ($(N-1)/2$ for odd $n$, $n=N/2$ and $n=N/2-1$ for even $N$). This design can be attained for $N$ that are either even or odd. We will consider when $N$ is odd, i.e. when $N=M+1$ where $M$ is an even number. For such a filter length, evenness implies that $h[n]=h[M-n]$. Suppose the impulse response is designed so that such is the case. Let's take a look at the system's frequency response, using that symmetry to simplify things:$\begin{align*} H(\omega)&= \sum_{n=0}^{M} h[n]e^{-j\omega n}\\&= \sum_{n=0}^{M/2-1} h[n]e^{-j\omega n} + h[M/2]e^{-j\omega M/2} + \sum_{n=M/2+1}^{M} h[n]e^{-j\omega n} \\&= \sum_{n=0}^{M/2-1} h[n]e^{-j\omega n} + h[M/2]e^{-j\omega M/2} + \sum_{n=M/2+1}^{M} h[M-n]e^{-j\omega n} \\&= \sum_{n=0}^{M/2-1} h[n]e^{-j\omega n} + h[M/2]e^{-j\omega M/2} + \sum_{r=0}^{M/2-1} h[r]e^{-j\omega (M-r)} \\&= h[M/2]e^{-j\omega M/2} + \sum_{n=0}^{M/2-1} h[n]\left(e^{-j\omega n} + e^{j\omega (n-M)} \right)\\&= \left( h[M/2] + \sum_{n=0}^{M/2-1} 2 h[n]\cos(\omega (n-M/2)) \right) e^{-j\omega M/2}\\&= A(\omega) e^{-j\omega M/2} \end{align*}$Take a close look at the $A(\omega)$ term. It is called the filter's amplitude, because its amplitude is the same as the amplitude of the frequency response: $|A(\omega)|=|H(\omega)|$. It is also purely real-valued. Thus the frequency response of the filter is a real number multiplied by an exponential function $e^{-j\omega M/2}$ that has linear phase. This means that the frequency response has a perfectly linear phase, except when the sign of $A(\omega)$ changes. However, since $A(\omega)$ will hover around the value of $1$ in the filter's pass-band, the filter will have linear phase in the pass-band.

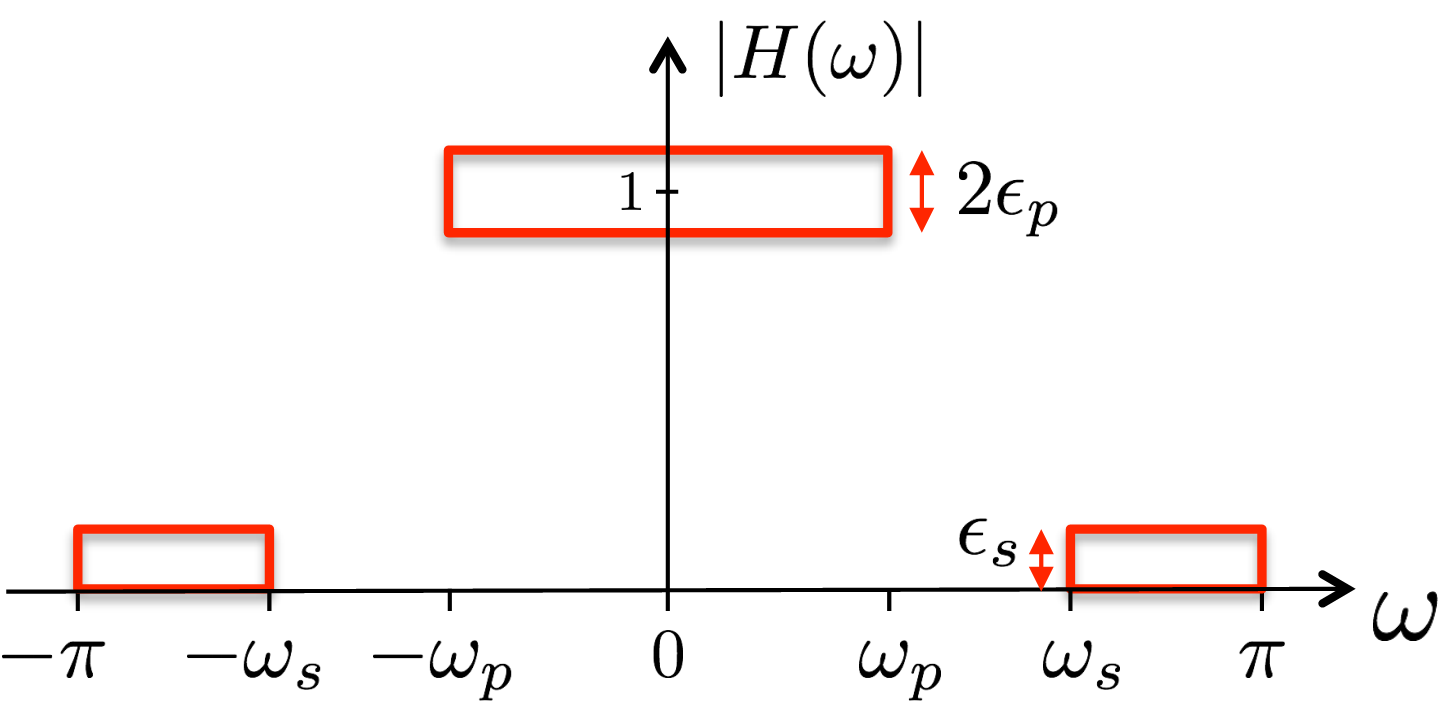

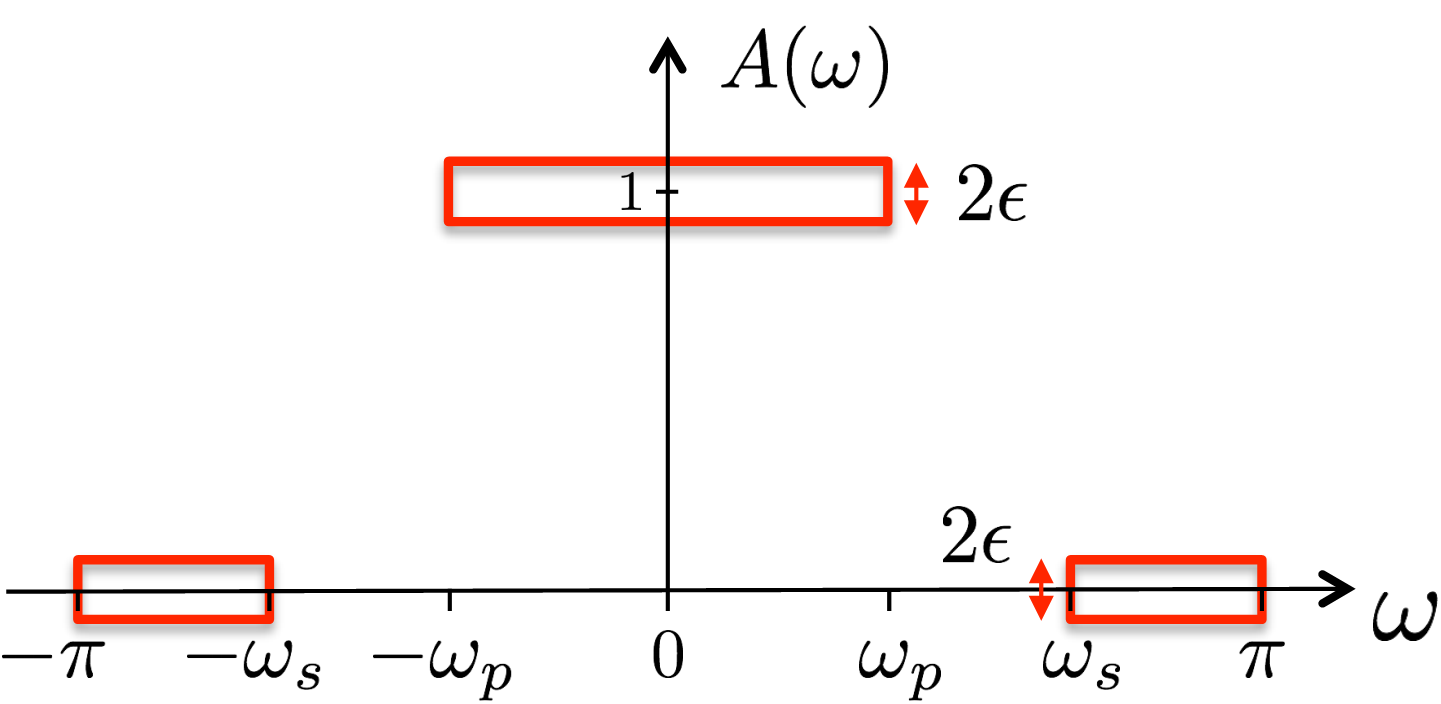

Suppose we wanted to create a low-pass filter of length $N=21$ (order $M=20$), with a pass-band from $\omega=0$ to $\omega=.3\pi$ and a stop-band from $\omega=.35\pi$ to $\omega=\pi$. Among all possible FIR filters of length $N=21$, an FIR equiripple filter will have the smallest maximum deviation from the optimal frequency response magnitudes (of $|H(\omega)|=1$ in the pass-band and $|H(\omega)|=0$ in the stop-band). According to the equiripple filter properties, its frequency response will touch these error bounding boxes $\frac{M}{2}+2=12$ times. The equiripple filter is also designed, as described above, to have an impulse response that has even symmetry about its $n=10$ center time value. As a result, it will have a generalized linear phase: Finally, as this filter is an FIR filter, it will not have any poles (except for those at $z=0$ and, if it were acausal, at $z=\infty$). Since its order is $M=20$, it does have $20$ zeros:
The filter in the first example, while optimal for its length, still has considerable deviation from the ideal frequency response of $1$ in the pass-band and $0$ in the stop-band. Having a more ideal response is straightforward, simply increase the length of the filter; as described above, the MATLAB command firpmord could be used to tell us the minimum length required to achieve a certain margin of tolerance from the ideal response. Suppose we had some requirement in mind, and that command told us a filter length of $101$ was required. The resulting equiripple filter of that length is below.
